Last week I was working on my new fileserver. To ensure my data will be a bit safer I will use a RAID solution. In my storage I had a Dell Perc6 controller, perfect for my needs. There was just one problem, when installed my server didn't boot.
I heard about it before, use tape to mask 2 pins in the PCI-E bus. After searching a bit more I found exactly what these 2 pins do, and I took the step and it works like a charm.
The pins you need to mask are:
B5 (SMCLK, SMBus clock) an B6 (SMDAT, SMBus data)
When these two are masked you are blocking the SMBus signals, now they cannot interrupt the boot process anymore. In the past there where only some vague guidelines for this, not real standard, which lead to a variety of different implementations, which in the current time lead to issues with new motherboards who do follow the now current standards.
If you want to apply this mod as well, you may do so with some insulation (electrical) tape or paint you use on nails. I do recommend the first one.

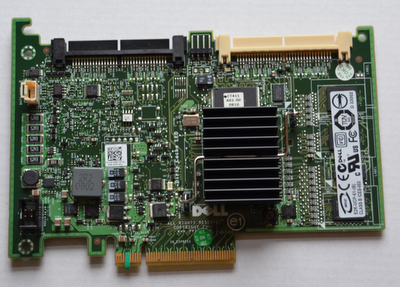

As you can see on the picture on the right I used the tape. You must only cover these 2 pins on THIS side of the controller, you mustn't tape the other side!
I hope this will help some other people in the future.
This has been tested and found working on Perc5 controllers as well!
p.s. this was tested with this hardware
SuperMicro H8SGL-F
AMD Opteron 6166HE
4x4GB ddr3 ecc reg
ESXi 5 (boot from usb)
2x2TB Seagate (attached to the perc6)
Later on I successfully added the 2x2TB as a mirrored RAID setup to my ESX as a datahost.
This Perc6 can only see harddisks up to 2TB, if I ad 3 TB harddisks it only sees 2.1TB
Update:
This raidcontroller has been moved to another system with the same mod, and it works perfectly.
ASRock P67 Extreme 4
Intel I3 3220T
2x2GB DDR3
8x2TB attached to the perc 6
Also confirmed working on the folowing cards:
IBM SR M1115
Dell Perc5
Dell H310
And probably all other LSI 1078 and LSI 9223-8i bases controllers.
p.s. this was tested with this hardware
SuperMicro H8SGL-F
AMD Opteron 6166HE
4x4GB ddr3 ecc reg
ESXi 5 (boot from usb)
2x2TB Seagate (attached to the perc6)
Later on I successfully added the 2x2TB as a mirrored RAID setup to my ESX as a datahost.
This Perc6 can only see harddisks up to 2TB, if I ad 3 TB harddisks it only sees 2.1TB
Update:
This raidcontroller has been moved to another system with the same mod, and it works perfectly.
ASRock P67 Extreme 4
Intel I3 3220T
2x2GB DDR3
8x2TB attached to the perc 6
Also confirmed working on the folowing cards:
IBM SR M1115
Dell Perc5
Dell H310
And probably all other LSI 1078 and LSI 9223-8i bases controllers.
Cheers,
Yannick
For anyone else trying this on a newer motherboard, like a B75. Tape the pins and disable the onboard video. I could not get past the "Initializing HA-0 (Bus 1, Dev 0)" message until I disabled the on board video and placed a PCI-e Video card in the system.
ReplyDeleteThank you for this comment. I hope it will be useful for other people!
DeleteI just moved an LSI 9211 from a Ryzen system where it worked without any modification to an old Intel P67 system where this was required. I vaguely remembered this mod when my MSI P67A-GD65 system wouldn't POST and found this article. The best tape that I found for something like this was labeler tape. Cut to size and peel off back and place where you need it.
DeleteIt worked on the first attempt so thanks for the article.
Hi Yannik,
ReplyDeleteCan you confirm that the PERC 6/i RAID controller doesn't recognise Hard Disks that have more than 2 TB storage capacity ? Is this a hardware limitation ?
My PERC 6/i has the following software installed : FirmWare 1.22.52-1909, BIOS 2.04.00, package 6.3.3-0002 (this is the latest, I believe).
My plan is to get a bunch of 3 TB HDD's to build a RAID array (GPT), but if the PERC 6/i isn't able to recognise the full size then it's no use buying 3 TB disks.
My server is built around a Gigabyte H77 motherboard without a dedicated graphics card (using the CPU's integrated graphics only). I had no problems getting everything running.
This is confirmed, you can not use disk larger then 2TB on this controller. This is a hardware limitation as far as I know.
DeleteI tried it with the latest firmware and it doesn't recognise 3Tb disks
I used this tape mod on a Dell Perc H310 flashed with IT firmware on a Gigabyte Z77 motherboard. Before the mod, the system would only beep several times and restart.
ReplyDeletethanks
You're welcome! hope you enjoy!
DeleteA guy over here performed the same trick on a Dell H310 combined with a Gigabyte GA-Z77-D3H
ReplyDeletehttp://lime-technology.com/forum/index.php?topic=28727.0
On my motherboard (Asus Rampage III Extreme, X58), inserting a reflashed (IT) Dell Perc H310 disables memory slot B1. So at least one DIMM is "lost" and the system memory count goes down.
ReplyDeleteTaping over pins B5/B6 solves the problem.
Hopefully this will prevent some people from pulling their hair out ;)
Thank you for this addition! I hope more people will find this useful!
DeleteHi,
Deletejust wanted to let you guys know, that this taping trick solved my problem as well.
RAID-Controller: Adaptec / Microsemi 3154-16i
Board: ASUS P9D WS
Symptoms were:
1. System didn't boot with DIMM in slots A1 or B1.
2. With no DIMMs in slots A1 and B1 there was a "ghost DIMM" shown in BIOS (DIMM A1: 8GB @ 7(!!)MHz).
I'm now running fine with 32 GB (all slots used) and that mentioned RAID controller.
Hi what can do the lsi firmware better with or with out IT mode ? This card is not the real deal.
ReplyDeleteWhat do you mean?
DeleteTY for very helpful blog article. I can confirm that "taping" mod works with IBM SR M1115 (which is LSI 9223-8i) as well. We could not get it booting with Lenovo ThinkServer TS440 and more than 2 sticks of memory installed. With tape, it boots normally with 4 sticks of memory ...
ReplyDeleteI'm glad to see this helped you! And thank you for your contribution about the IBM controller!
DeleteThank you very much!!!! you solved mi problem with perc h310 in Asus maximus VI formula xD <3
ReplyDeleteYou are very welcome!
DeleteThx, now my problem is that the performance is low with the perc h310 raid 0 than the integrated intel raid o... :/
DeleteI suposed that the raid 0 hardware is better than the raid 0 software...
maybe i am ins a mistake.
Are you sure you taped only those 2 pins and not accidentally another pin to?
DeleteI never experienced any performance issues, not with the perc6, sas6, or the H310
Poor performance solved.
DeleteDownload Megaraid Storage Manager from LSI for a 9211-8i or a 9240 (Works on Perc controllers). Once installed, enable the disk write cache on each drive, it is off by default (Onboard software based controllers enable cache by default).
Disk performance will dramatically improve.
Yannick,
ReplyDeleteThis is a very useful post and some time ago resolved my issue with H310 on ASUS P5B Deluex motherboard. All worked flawless until I decided to build myself a new server, based on Asus Gryphon Z87. I've moved H310 with a piece of tape over pins B5 and B6 to the new mobo. It powers up OK and CentOS starts booting, the OS is installed on a separate drive connected to one of the mobo SATA ports, so no problem there. However, during boot process kernel reports problems with sas_megaraid, it hangs for a while and loops indefinitely with kernel udev messages, mostly reporting "unexpectedly returned with status 0x0100".
I played around with quite a few BIOS settings for PCI Express - link speed, gen, but none of combinations seems to do the trick. I tried using a dedicated GPU, as someone above suggested that, but it does not improve matters. Additionally I tried a few various grub kernel boot options. All leads to the same outcome – CentOS refuses to boot with H310 installed on the motherboard.
As I sanity check I have removed Perc H310 card and as expected problem goes away. Another of my checks was to put back H310 and try booting from CentOS 6.5 installation CD, but I ran in to the same problems.
I checked quite a few BIOS settings for PCI Express - the link speed, gen etc, tried all available PCI express slots, but none of the combinations seems to do the trick.
One of my last checks was to try running insterting H310 without B5/B6 covered, but as I expected Gryphon Z87 just goes it power on/power off cycle, very similar to the P5B.
I spent quite a bit of time trying to make it work or find some answers without much success. Looks like in my case H310 worked superbly with an older Asus motherboard, but refuses to do so with a modern Gryphon Z87.
Did you or maybe anyone else reading this post encounter similar problem with modern motherboards and Dell Perc H310?
Thanks,
renfri
Hello renfri,
Deletefirst of all thank you! And I'm happy this helped you in the past!
Unfortunately I cannot help you with this question, simply because I have never experienced this before.
I hope another visitor can help you out with this situation!
So anyone, feel free to reply if you know a solution or have another tip which might help!
I have seen strange when....
DeleteThere is another, different brand, raid controller installed (onboard raid enabled).
There is another PCI-E card in a higher priority slot (Swap cards around).
Bios needs to be updated on the motherboard, the raid controller, or both.
I have an ASUS P5N-D motherboard and have just received my H310 card. The system will post fine and I can enter the configuration for the H310. I can set up my virtual disks with no problem. It will initialize them successfully. However, when I reboot the system, after the H310 has initialized successfully, I get the error message "No physical memory is available at the location required for the windows boot manager". The H310 is not configured as the boot device, I have tried several different boot options, SSD, regular HDD and a USB stick. They all fail with the same error. I have tried taping up the H310 as described in this article, with no success. Any thoughts?
ReplyDeleteI don't think taping will do the trick.
DeleteI heard more of these problems you discribe with nvidia chipsets. Try and clear the complete CMOS. Ater that only point 1 hdd as boot device and disable all the other (both in hdd boot order as in device boot ordere).
I hope this works for you!
Hi Yannick. Thanks for the reply, I tried your suggestion but unfortunately it did not produce any success. I will see about trying a different motherboard. Thanks again.
DeleteHello Christopher, I was wondering, where you able to solve this? It would be nice if you let us know what did it so in the future other people might benefit to!
DeleteHI Yannick, I was unable to get the h310 to work in the ASUS P5N-D motherboard. I am using an Areca controller instead and its working fine. I tried the H310 in a HP ML350G5 as well, but it wouldnt boot in there either. Maybe its a bad card? Anyways, thanks for all your help and suggestions.
DeleteUnfortuonalty that sometimes happens.
DeleteI'm glad you have a working system now with the Areca!
the trick works perfectly on mobo asus p5k
ReplyDeleteThank you for the addition!
DeleteFor anyone out there interested, I just did this same tape trick on a DELL PERC H710P to get it to work in a ASUS Maximus GENE VI motherboard. It would not complete the post process before. It works perfect now. Good luck.
ReplyDeleteThank you for the addition!
DeleteSame here, H710P in an HP Z600, thanks!!
DeleteThis works on Lenovo ThinkServer TS440 and an Intel I350-T4 ethernet card. One memory module (4GB or 8GB) in DIMM2 works but two or more fails. When you it fails, you will get 3 short and 1 long beeps repeatedly on power on. Thank you Yannick for this excellent post.
ReplyDeleteYou are very welcome! I'm always glad to see this mod works out for people!
DeleteI have heard more people with the memory issue, unfortunately I was not able to reproduce this, so I could not come up with a solution. Thank you!
Works perfectly with Dell PERC H310 on Asus Maximus III Formula, although I had to change controller´s heatsink for a bigger one. It´s quite a turkey fryer
ReplyDeleteIt can get quit hot indeed, it can handle some stress tough, but better safe then sorrow. make sure you get a good airflow past it.
DeleteGlad to see it working for you, thanks for the notification!
Thanks worked great on my IBM SR M1115. Almost returned card, so glad I found your site!
ReplyDeleteGreat to hear this worked for you!
DeleteYannick,
ReplyDeleteThank you for the article. I have an IBM M1115 that I cross flashed to LSI 9211-8i IT mode. I could not get the board to boot on 3 different machines until taping the pins.
However, I can get the card to boot, flash, configure etc. but cannot get it to boot from one of the connected HDD's even though it is recognised as a boot device. At the point the card bios recognises and identifies the boot drive as being able to boot the system it says that the boot rom was successfully loaded and then it just sits there with that message on the screen.
All I can do at that point is reboot the machine. I have it overnight thinking maybe it was some kind of timeout to noavail.
If I boot teh system from the network or CD etc. Linux sees the drive and can install to it etc. It is correctly recognised as a SAS2008 device using the MPT driver.
But I cannot boot any drive from it. I was hoping others had this issue. Do the taped pins have anything to do with booting capability of the cards? I know a lot of people just use these to provide mass storage and boot from other sources.
On a Gigabyte P45 motherboard it will not POST without the taping.
Any help appreciated.
Cheers
Spart
I tried on the Dell 2950 server, not worked. I placed and removed the tape twice.
ReplyDeleteMy raid controller is model 0H726F.
I think the problem lies elsewhere.
But anyway thank you for sharing the solution.
It should always work in this server. It was designed for it. If it doesn't work out probably means it's broken!
DeleteTaping b5 and b6 works like a charm with my ASUS Commando motherboard. The only thing is there is only 7GB internal memory left of a total of 8GB.
ReplyDeleteI moved my external video card to PCIe slot number 2 and H310 to nr 1.
Thanks for this advice. I've got a GA-X58A-UD3R, and bought two used Dell Perc H310 cards for a new unRAID build. With either card installed, my system wouldn't boot. Add the tiny piece of electrical tape over the 5 & 6 pins, and voila!
ReplyDeleteI would have never figured this out (and wouldn't have bought the cards) if I hadn't found this blog first. Cheers!
I'm very happy to see my blog helped you to buy these cards and get a system working! Good luck with your system!
DeleteHard Disk Support? why i cant create a virtual disk with 2 seagate Cheetah 15K.7 450GB SAS ST3450857SS, I am on a Dell Poweredge R900 with an PERC 6/I.... can anoyone have an idea...?
ReplyDeleteWorked on an Intel SRCSAS144E (latest firmware) for me. Unfortunately the damn controller won't recognize my 4TB SAS drives, but it does recognize SATA and smaller SAS drives. Thanks! I plan on using this trick on replacement controllers should they not work in my MB.
ReplyDeleteWhile this tape mod works great, I'm always tinkering with this machine and I'm concerned the tape may move over other pins or get stuck in the slot. Can anyone think of a good reason not to just cut the traces at the top of pins B5 and B6?
ReplyDeletecutting the traces might damage your card permanently. You might hit another lane, or damage/weaken the entire pci-e bus.
DeleteBut if you have a steady hand and are not afraid of doing this, sure, go ahead! It should work just fine.
You could also use the nail polish mod, this wont come of that easy.
I had it once that the tape got of and got stuck in the slot, a pair of tweezers got it out without a hitch tough.
I'll probably save cutting for the time the tape comes off and I have problems. I'm not entirely new to that kind of mod though - a while back I cut down an eBay-cheap x16 video card to fit in a 1x slot to drive a third screen while I saved up for a new Radeon card that would do three screens.
ReplyDeleteyou could always leave the tapes a bit longer so they properly stick out on the top of you pci-e slot. This way if they come off, you can easily get them out.
DeleteIf you were to cut the lanes physically, i'd suggest you use a very small drill instead, and drill a hole instead. Less chance of hitting other vital things I think.
Thanks a lot for the information, I was having a weird problem where my ram wouldn't work in 3-channel mode with an Asus P6T motherboard and an i7 920. It was very odd because the ram was detected and seen in memtest86 but the BIOS was not using those sticks so there was only the size of 2 sticks usable. Taping the pins made everything work as it should!!
ReplyDeleteI was using a Dell h310 flashed to IT mode by the way.
DeleteI'm happy to hear this worked for you!
DeleteCan confirm it is solving the memory issue with the Asus P9D-I mini-ITX mainboard as well.. Mainboard was fitted with 16GB ECC ram, but only 8 were recognized.. Controller is a LSI SAS9223-8i... after taping these two pins, everything works fine as expected :)
ReplyDeleteGreat to hear this worked for you to! Enjoy!
DeleteI know this is an old article, but BRILLIANT! ABSOLUTELY BRILLIANT!
ReplyDeleteNewer TS140, wanted to run PERC 6i for RAID 1. When I installed it, RAM banks 3 and 4 were disabled, and if I populated them, the system would 3-1 beep and refuse to start. Added the tape, booted. All banks are populated and the RAM is seen. This saved me at least $200!
BRILLIANT! Thank you!!
Absolutely brilliant. You are great.
ReplyDeleteThx! Glad I could help
DeleteI have a TS440 with a LSI 9240-8i (a.k.a. ThinkServer RAID 500 Adapter). It's running Windows 2012 R2 with the latest drivers and firmware, however the server will crash with IO intense operations. A user can just be copying large quantity of files and the server will crash and reboot itself. I have 2 1TB drives in RAID 1, and a 1TB drive as a JBOD for backup. If the system tries to back itself up to the JBOD device, the server will crash and reboot. Reading through the post, is it possible this would fix this issue?
ReplyDeleteI don't think this mod will help. Have you tried checking the temperature of you raid controller? It might get to warm and thus shut down.
DeleteBummer. I haven't checked the temperature-I'll see if I can find a way to do that and run some tests.
DeleteIt's been this way since it was new and we just deal with it because we didn't find it until it was fully integrated into the network. I tried talking to Lenovo about it but it was built with WD drives that didn't have Lenovo's sticker on them, so they wont address it until there are Lenovo branded drives in it.
Absolutely amazing!!! Thank you for the excellent guide.
ReplyDeleteWorked with a PERC H310 (LSI 9211-8i) on an ASUS Z87-C.
ReplyDeleteThanks for your input!
DeleteThis workaround works with Sun F20 too.
ReplyDeleteThanks for your input!
DeleteJust to confirm. This works using a HP 331T NIC in a HP Elite 8300 desktop as well.
ReplyDeleteSuccessful "taping" of Dell H710 controller with Fujitsu Primergy TX100 S3 (Systemboard D3009). Must enable "EFI Compatible ROM" in BIOS, otherwise POST will be hidden.
ReplyDeleteThanks Yannick, you saved my day!
All
ReplyDeleteMaybe someone has posted this already, only i got the same issue with the Asus P5k64 WS and the Dell Perc H200 my systems was not booting.
This fix solved it, YEEAHH Ducktape did the job.
THANKS to this post !!!
tried this with a gigabyte z170-ud3 intel mobo w/ h310, can boot into windows (booting off a drive connected directly to the mobos sata) and access drives
ReplyDeletePerc H200I - working
ReplyDeleteGreat! H310 working with Z170 and 64GB RAM now! The DIMM_B2 will be failed without this mod. Thank you!
ReplyDeleteStill relevant for the i350-T4 4 port nic in combination with some new (8th gen intel) motherboards. Fixes the dual-channel RAM not seen at boot. Thanks!
ReplyDeleteWas anyone here capable of using the H310 with SSD's?
ReplyDeleteMine won't recognize any SSD, but it will happily recognize HDD's.
Tested in both IT and IR modes.
Hi, I have a dell T110 II that I am trying to install a graphics card into and The system won’t boot. Thanks have tried taping the pins suggested but no luck? Anything else I can try?
ReplyDeleteThank you so much. I was installing Dell KH08P Broadcom BCM95719A1904G 4-Port Gigabit Ethernet PCIe x4 Network Card into old msi g41m-p33 combo (socket 775) motherboard. When booting I would get 3 short beeps as BIOS error. After using this workaround PC now boots/posts with NIS card
ReplyDeleteThis comment has been removed by a blog administrator.
ReplyDeleteWorks with a Broadcom 57810s on an H8SCM as well. Thanks for the tutorial, much appreciated!
ReplyDeleteThank you very much for the quick fix. I have a Dell Perc H310 card installed on my ASUS X58 Sabertooth motherboard which has 6 DIMM memory slots and the center 2, DIMM_B1 & B2, were lost when this card was installed in either one of the two PCI Express slots. My max DIMM memory before this card was 24GB and it dropped to 16GB after the card was installed. I put tape on the card as recommended and booted the computer with no problems. I then installed all 6 Kingston 4 GB DDR3 DIMM's and booted up. Without even using the MEMOK button it booted up and all the memory was there. To confirm, I then ran Belarc advisor and it reported all 6 slots showing "24536 Megabytes Usable Installed Memory. Slot 'DIMM0' has 4096 MB Slot 'DIMM1' has 4096 MB Slot 'DIMM2' has 4096 MB Slot 'DIMM3' has 4096 MB Slot 'DIMM4' has 4096 MB Slot 'DIMM5' has 4096 MB". I now have to update my firmware.
ReplyDeleteI Like this post and thanks to share. Post is very nice! By the way, I want to share with you information about the best:
ReplyDeletePrinter Helpline Number USA
Dell Printer Help Support Number USA
Unfortunately this trick did not work for me. My Intel S1200BTL refuses to boot with my HP NC523SFP installed, no matter any of the tips I tried in this post. Thanks anyway though!
ReplyDeleteThis comment has been removed by the author.
DeleteHey! I'm in a similar sitaution, with a S1200RPL and the same card, refuses to boot and gives me a 96h error code. Did you manage to solve the problem or find a card that works? Thanks in advance!
DeleteCan confirm it works in my desktop pc with a dell perc h700. I taped the 5th and 6th pin from the left.
ReplyDeleteDankjewel neef
Confirm it works on the Dell Perc H310 on a Z77MX-QUO-AOS. Was driving me crazy, since it works on my Asus ROG Strix just fine.
ReplyDeleteConfirm it works with Dell PERC H310 on an Asus P5E3 premium with pins B5 and B6 taped over. Without tape, system does not POST.
ReplyDeleteGreat Article!
Charles
Building a new pfSense box. i3-9100F, Gigabyte Z390UD MB, 8GB DDR4-2400 RAM.
ReplyDeleteI have two Intel i350T4 (four port) NICs. When I install any of them into this board, half of the RAM disappeared! Used this "trick" on both NICs and now it boots and all 8GB of RAM is available! Thanks for this post!
GREAT SAVE!!! Just setup a Dell C2100, I removed the slow H200 Raid controller and put an H700 in; and life got real bad, Controller worked but I started getting Memory errors. That controller took over the B0-2 & E0-2 Memory addresses. I was thinking the MB Broke until we found your finding here, a little tape and 20 minutes later a 2day nightmare solved... BIG Thanks!!
ReplyDeleteMany thanks, sorted our issue as well for an HP NC552SP and GA-Z77-D3H motherboard.
ReplyDeleteThis comment has been removed by the author.
ReplyDeleteThe taping mod worked fine for my Gigabyte Z390UD home server build with an i5-8400 and 12GB RAM. Card is a Dell H310. Strangely, the card works fine without any modification if inserted into the first PCI-E x16 slot (which is linked to the CPU), but requires taping to work in any other slot.
ReplyDeleteThis comment has been removed by the author.
ReplyDeleteJust wanted to tell you I'm still linking to this post in March of 2020 because it's turned out to be so useful. Thanks!
ReplyDeletehttps://techaedgar.com/download-2020-ipad-pro-wallpaper/
ReplyDeleteTech Aedgar
ReplyDeleteThanks for such a great information.Our team manages all your social accounts and organised regular engaging social media campaigns so that your business is always creating a buzz on social media.
ReplyDeletedigital marketing consultants in chennai | Leading digital marketing agencies in chennai | digital marketing agencies in chennai | Website designers in chennai
Thank You so much for this article
ReplyDeleteManthan Vasani Photography
Best Desktop Wallpaper
Best Mobile Wallpaper
Best Photography Quotes
Best Inspirational Photography Quotes
Fancy Text Generator
ReplyDeleteFancy Text Generator
ReplyDeleteSuper Fancy Text Generator
ReplyDeleteThank you for sharing such an amazing content
ReplyDeleteAlso you can visit my site and find similar and informative content on the topic :
best digital marketing training institute delhi noida
More than seven years later and this still usefull for many. Thanks pal !!!
ReplyDeleteWorked like a charm with the following setup.
Gigabyte Z77X-D3H rev1.1
Dell PERC H310
Cheers!
Worked on the following:
ReplyDeleteGA-Z68XP-UD3 (rev. 1.3)
Thank you!
This helped me to get the Dell/Intel T520-D2 to work in my machines. Thank you very much!
ReplyDeleteMany years later and this worked for me on a Lenovo TS140 and an Intel i350 network card that refused to use any ramm in dimm3 when the network card is installed. All working ok now.
ReplyDeleteHey,
ReplyDeleteI know this is an old thread. But this saved my butt.
Wanted to mention that this "mod" works with IBM M5110 card.
On gigabyte GA-P67A-D3-B3 motherboard.
And in windows im using LSIs megaraid driver.
Thanks!!
Works on LSI 9240 Flashed IT mode.
ReplyDeleteThank you! My MSI H81M failed to POST at all with my PERC H700. After taping the suggested pins, it now works well. I had to update the card's firmware to make it read drives >2TB, though, and I installed a fan in the next PCI-E slot over to prevent it overheating- these cards get HOT.
ReplyDeleteHello,
ReplyDeleteAlso failed to POST with a PERC H740 and a Gigabyte Z390.
After the modding, it works well now.
Thanks for this solution.
This also works on H810 cards with an Asus Maximus VIII Formula board. Saved my behind tonight.
ReplyDeletevery useful information for everyone
ReplyDeleteFancy Text generator
motivational quotes
Morse code decoder
weird text generator
zalgo text generator
small text generator
text decorator
maaan this got me up and running again, my dual 10G card just blocked post but now we are going :D tnx man
ReplyDeleteHola Amigos! I am running an Asus Rampage II Extreme with a Dell Perc H310 Controller (Flashed with Broadcom IT-Mode Firmware) and Tape Mod on those 2 Pins... Works like charm - Greeeetz, Toni :-*
ReplyDeleteJust did this for my Asus 170-A Board using a HP NC552SFP Had the issues where RAM module needed to be removed etc. Applied Electric Tape to b5 abd 6 and works like a dream. I was getting CPU RED LED solid on the mobo and no post bios.
ReplyDeleteAwesome post! Thanks for sharing, keep posting.
ReplyDeleterefurbished graphic cards
hi
ReplyDeletethe wonder weeks apk mod pro. . . . ..
panda pro apk mod 1.5.0 no verification apk
Yikes! I really tried this as a fluke since I really didn't think it would solve my issue. I have 2 Dell XPS 8930 and was trying to add an Intel i350t4 (Yes, adding 4 NIC ports!) This worked like a dream, although had a few miss-tries with the tape pealing off on insertion.
ReplyDeleteNow have all 4 NICs running on ESXi 7.0.2 with NSX peering with my upbound routers! Thanks much!
Thank you ! This worked to resolve a boot issue on Lenovo MP93p box after installing an Intel I350-T2 dual port ethernet adapter.
ReplyDeletethis is a great article thanks for sharing this informative information
ReplyDeletejacketzone
Get Ajord is an online exclusive store selling high quality traditional wet shaving products and Shaving Gifts. We are proud to offer a wide selection of the most beautiful, handcrafted Shaving razors, Best shaving brush, shaving sets, Shaving Kits for men and other grooming accessories.
ReplyDeleteThis hack helped run the HP NC552SFP NIC on several non-server motherboards: Asus, Gigabyte, and Supermicro servers. Thanks buddy!
ReplyDeleteThank you for this, even after 10 years this is still helping peeps like me out there. :D
ReplyDeleteTried the tape mod with a Dell H310 SAS card, on a H81 motherboard.
Before the mod card worked with some older motherboards, and latest ones (Z570) but failed on my H81 motherboard, where the following issue was observerd.
- System won't post, continuous beeps, and system restarts after few seconds. (same behaviour looped)
After the mod it seamlessly works with 2 x 8TB drives attached to it. Thanks again Yannick :)
EDIT: Z590*
DeleteJust built a new NAS box (Gigabyte B560M D3H) and had the dreaded no POST / multi beep situation. Initially thought the RAM was knackered so i RMA'ed it. Was about to strip everything down and rebuild piecemeal when i found this article. Covered the two pins on my LSI 9223-8i with some label printer tape and i got an immediate POST.
ReplyDeleteThank you very much for this article - it saved me days of headache!
Built a Gigabyte B560M D3H V2 and am trying to get an H710P in there. Taped pins 5 and 6. The computer posts, but not the card. The card does show on the Bios and in Device Manager, apparently missing drivers.
ReplyDeleteDid I miss something?
Wow you are a serious genious, got same reboot loop problem with
ReplyDeleteLSI 9211-8i P20 IT on my P67a-C43 mb.
Found your article, tryed it with green paint masking tape, and worked like a charm!
This guide helped me through the installation the HP NC552SFP DualPort10GbE in HP-Z600.
ReplyDeleteThe problem was incorrect memory DIMMs 1-3
Disable the bios on PCI Express Gen2 x4/x8 slot
Thank you, totally loved your article.
test
ReplyDeleteFor anyone who may find this useful:
ReplyDeleteI've just installed the old PERC 5i (DELL PN CN-0GP298) in a circa 2006 Intel based IBM Intelistation Z Pro type 9228-MC1 workstation (dual 5160 Xeon, 16GB DDR2 ECC RAM populating 4 out of the 8 slots, latest BIOS, and win 7 pro);
I've had NO ISSUES with the SMBus bug and didn't need to cover the pins. Card was plugged in, was recognized right away, boot process wasn't affected, and I was able to go to the management console and configure drives and then access them with no issues.
This particular IBM utilizes a very specific LSI1064E RAID controller which is a rather unique mini PCI-E card (39Y6635 or 43W8269) that mounts directly on the mobo in a dedicated slot, mine has failed after 14 years of use and I couldn't access my data, so I've frantically looked for an urgent replacement locally, found this 5i card and got it to work well and access my data in the mean time until I order the original replacement controller.
Still working in 2023 with a Intel I350-T4 on a Dell Wyse 5070 Extended Thin Client
ReplyDeleteThe article is a life-saver for my old Intel Z97 Mobo + LSI 2308-8i. After plugged in the LSI card in IT mode, boot loop occurred. I am scared in hoping it will not cook my mobo and HDD. Glad there is no damage. In most the similar articles, most of them mentioned unable to boot instead of boot loop. But as there is no other info, this is my last try or I will abandon the approach. Surprisingly, after masking the 5th/6th pin, the issue is resolved. Thanks for your great info and it is still valid and helpful. I think it is still related to the boot order which is required for boot from LSI HBA ports.
ReplyDeleteThank you so much for this! I was about to order a new LSI card thinking it failed as my system would no longer post with it plugged in. Gigabyte B550 with a M1115. Works without fail now! Cheers.
ReplyDeleteMany thanks for a clear explanation and remedy for how a Dell Perc H310 prevented normal boot of a HP Elite 7300 MT and another PC with a Gigabyte P35-DS4 motherboard. A bit of electrical tape worked perfectly as described.
ReplyDeleteI used the method for Broadcom BCM95719A1904G, on a hp z230 sff. It works. Thank you!
ReplyDeleteThanks Bro,
ReplyDeleteit's working like a charm.
I tried everything, nothing worked, only continuous single Beep Code
and black screen Fan-speed (all PWM Fans ) continuous rising unless cold power off. I tried changing Bios Settings, Memory Constellation & Position changing, cmos reset ( battery, short-circuit ), everything thinkable .
Hardware:
Fucking Fujitsu W530 ( D3227-A12 1 Mainboard -> everything is special about that, really everything, 0% compatibility with anything and as an extra: Not supported by Fujitsu anymore, even deleted the Bios Updates from their Servers, thanks for that )
LSI 9300-8e 03-25648-01E
Connected via many Adapters to an on-Desk SAS-Bay ;)
Even crimped my own Power-cables with 0.75mm² xD
Kapton does the Magic by the way :)
ReplyDeleteThank you! Asus P8P67, wouldn't boot with a dell x540-t2 in either pci e slot, even with a s3 pci VGA card! Taped over b5 and b6 and hey presto it is working. Very pleased I found your post :)
ReplyDeleteMagic!
ReplyDelete
